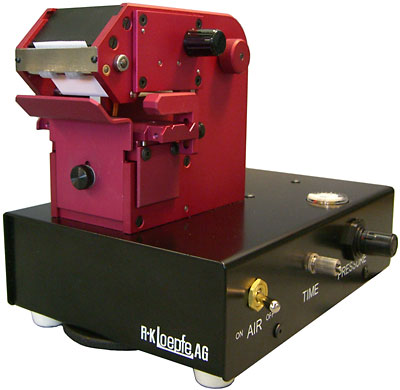

TP15 / TP10 Cable Marking Unit


TP15 or TP10 is a bench top marking unit for small series. Advantages include user-friendly handling, flexibility, cost-effectiveness, easy legibility, lasting and oil-resistant labeling, non-dislodgeable, and non-protruding markings. The printing unit operates using the hot stamping method with wear-resistant printing foil.

Technical Data

Number of Printing Wheels
  • Character height 1.2mm – 2.3mm: 15 wheels (TP15)
  • Character height 2.5mm – 4.0mm: 10 wheels (TP10)
Working Range Cable Outer Diameter
  • Cable diameter minimum: 1.0mm
  • Cable diameter maximum: 12.0mm
Selectable Signs per Printing Wheel: TP 15
(15 Printing Wheels)
  • Character Height 1.2mm to 2.3mm: Max. 20 signs according to your requirements
Selectable Signs per Printing Wheel: TP 10
(10 Printing Wheels)
  • Character Height 2.5mm to 4.0mm: Max. 15 signs according to your requirements
Number of Markings per Foil
  • Min. 12'000 / Max. 20'000 per Roll of Foil
Foil Type
  • 246 x 183 x 184mm
  • 11 lbs.

For more information and to order, please contact us or call (619) 855-0046.
