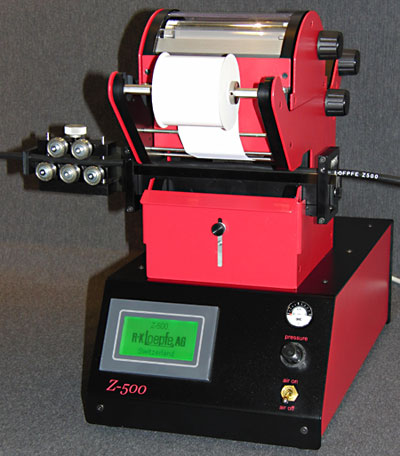

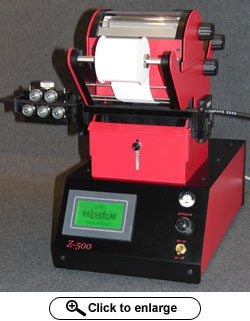

Z-500 Cable Marking Unit

Application

The printing unit Z-500 is an electro-pneumatic hot-stamping unit used to print on wires, cables, and hoses. The hot-stamping process produces abrasion-resistant markings in high quality. In this process a heated printing wheel packet presses printing foil onto the material to be printed on. All printing parameters such as contact pressure, printing time, and temperature can be selected by the user. In addition, the Z-500 is furnished with 3 power levels. This allows the printing of thin cables with few characters or thick cables with many characters.

Technical Data

Power Connection
  • 115 VAC, 60 Hz, max. 425 VA
  • 230 VAC, 50 Hz, max. 425 VA
Compressed Air Supply
  • 0.7 MPa
Heating Control
  • Sensor-controlled temperature control 90 – 180°C
Cable Minimum – Maximum
  • Individual marking: 1.6mm to 16.0mm
  • In-line marking: 1.6mm to 16.0mm
  • Optional in-line: 15.0mm to 24.0mm
Production Rate
  • ca. 0.5 seconds per marking (depending on time and stroke)
Number of Printing Wheels
  • 1.5mm to 2.3mm: 1 to 44 printing wheels (positions selectable by user)
  • 2.5mm to 3.5mm: 1 to 26 printing wheels (positions selectable by user)
Character heights in mm
  • 1.5 / 1.6 / 1.7 /1.8 / 2.0 /2.1 / 2.3 / 2.5 /3.5
    1.6 vertical
    3.5 flat
Signs per Printing Wheel
  • 40
Available Signs
  • Letters A – Z
  • Numbers 0 – 9 - / . (with one blank space)
Foil Type
Foil Dimensions
  • 29mm x 120m
  • 58mm x 120m
  • 116mm x 120m
Foil Consumption
  • Steplessly variable (adjustment to letter height)
Dimensions (L x W x H)
  • 470 x 230 x 400
  • 470 x 340 x 400 with wire straightening unit
Weight
  • 20 kg (44 lbs)
Noise Level
  • <70 dB (A)

For more information and to order, please contact us or call (619) 855-0046.
