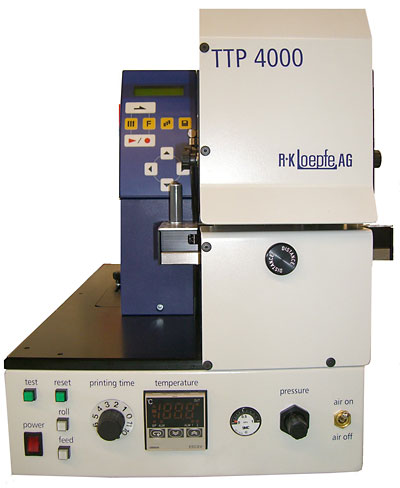

TTP 4000 Cable Marking Unit


The TTP 4000 is a cable marking unit for the most discriminating user. It offers a variety of cable marking possibilities and is extremely user-friendly.

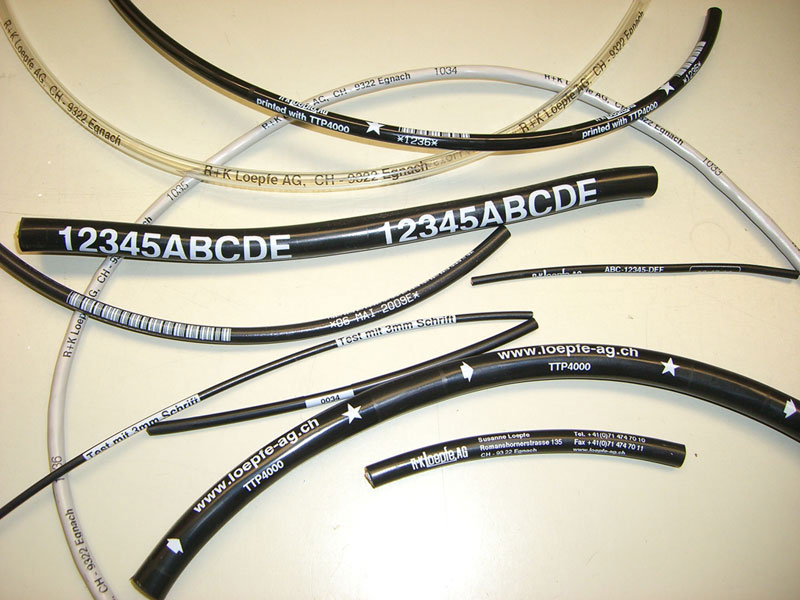

Marking Possibilities:
  • Date field
  • Consecutive numbering
  • Logos
  • Single-line text
  • Multi-line text
Simple Programming:
  • Directly on the unit; or
  • PC keyboard; or
  • with a laptop

Technical Data

Max. text face width

80mm (3.15")

Max. text face height

20mm (0.79") in roll mode

Smallest cable outer diameter

2mm (0.08")

Biggest cable outer diameter

15mm (0.59")

Measurements thermo foil

83mm x 300m (3.27" x 984 feet)

Measurements receptor foil

100mm x 150m (3.94" x 492 feet)

Foil consumption

5mm up to 30mm (0.12" up to 1.18")

Colors available

Black, White

Marking possibilities

Text field
Variable text fields
Variable data base
Consecutive numbering
Date field


Stroke mode
Roll mode

Text gadget

External keyboard

Connection, Interface cable

Parallel interface
USB interface
Ethernet 10/100 (optional)


COMPA 106/12, 300dpi


Length 70cm
Width 33cm (55cm open)
Height 38cm (65cm open)




Power 230VAC 50Hz / 115VAC 60Hz
Air 0.4 - 0.6Mpa

For more information and to order, please contact us or call (619) 855-0046.
