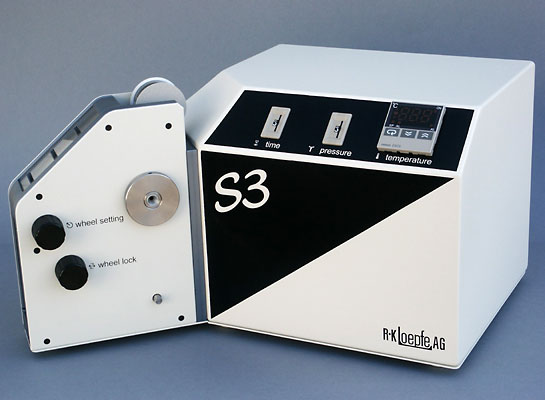

S3 Cable Marking Unit


The Cable & Wire Printing Unit S3 is used for the end labeling of cables, wires, and pneumatic hoses. The marking starts 28mm from the end of the cable or wire, leaving room to strip the cable/wire and to add a wire end sleeve. Because of the electronic function it can be used in a wide range of areas. The S3 is especially suitable for clients that often need to label small to medium series.

The printing unit operates on the hot marking method resulting in clean and abrasion-proof markings without the swelling of the cable.

Technical Data

Number of Printing Wheels
  • Character Height 1.6mm to 2.7mm: 6 pieces
Working Range Cable Outer Diameter
  • Cable diameter minimum 1.6mm
  • Cable diameter maximum 6.0mm
Signs per Printing Wheel
  • Character Height 1.6mm to 2.7mm: 28 signs (standard)
Number of Markings per Foil
  • ca. 17,000 markings
Foil Type
  • 420 x 360 x 240
  • 12.2 kg  (27 lbs)

For more information and to order, please contact us or call (619) 855-0046.
